HSGM

HEAT CUTTER BLADES

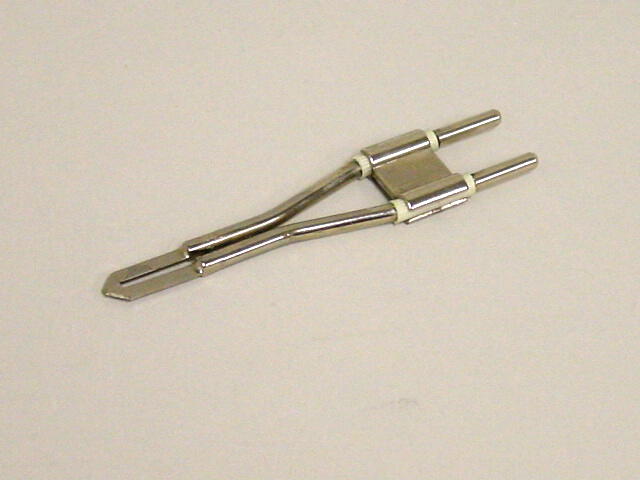

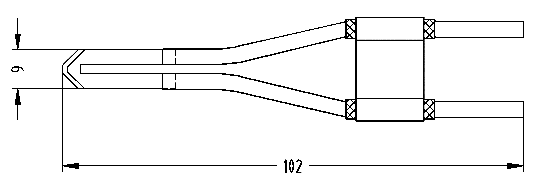

1.Type HS0-N

Cutting blade to cut fine fabric and thin cords.

For units: HSG-0, HSG-1-Vw,
HSG-03-VW, HSG-3-VW

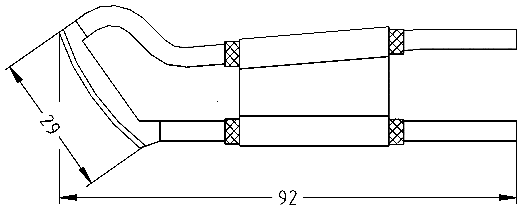

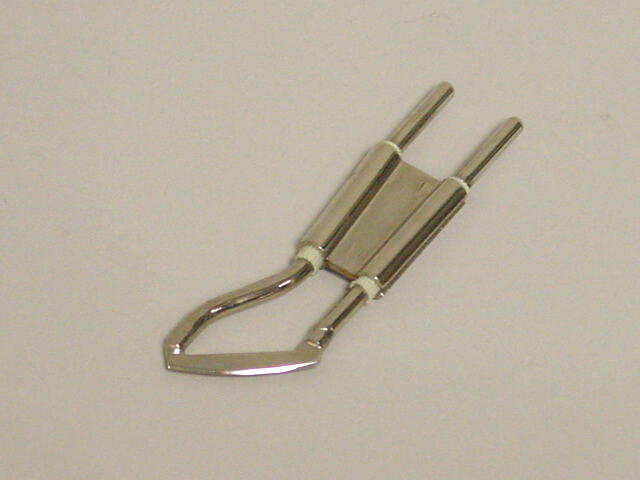

2.Type R

Cutting blade of higher capacity,
for separating stronger fabrics, strings
and ropes up to 15mm diameter.

For units: HSG-0, HSG-1-Vw,
HSG-03-VW, HSG-3-VW

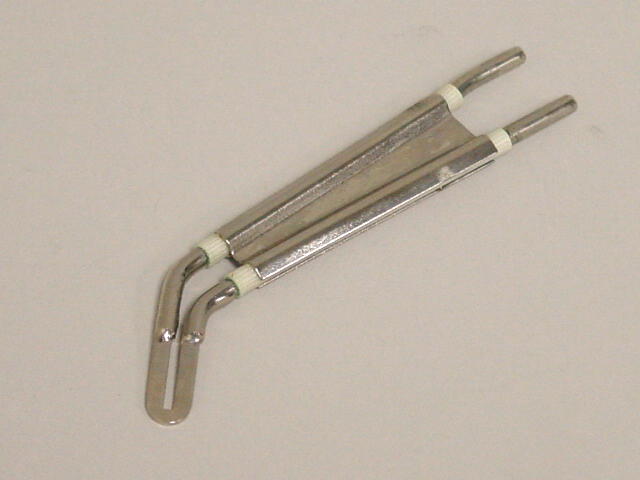

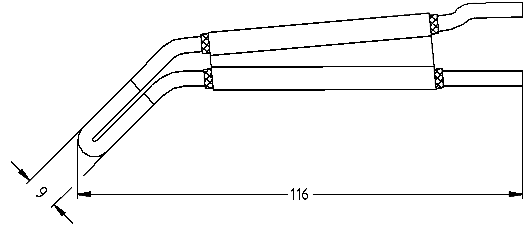

3.Type HG

For units: HSG-0, HSG-1-Vw,
HSG-03-VW, HSG-3-VW

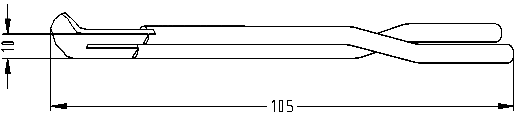

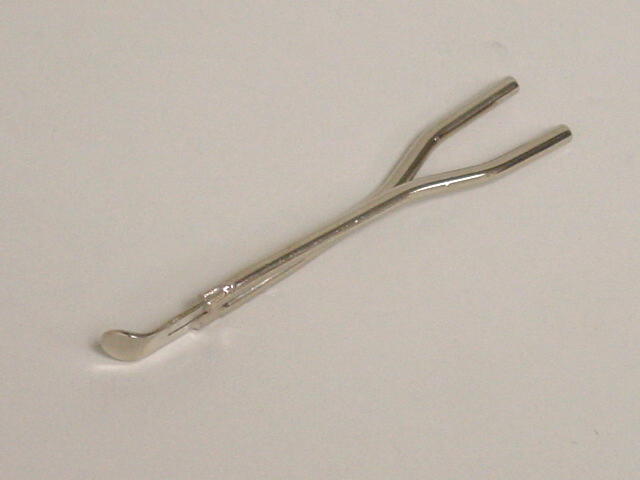

4.Type H

Fuse tip

For units: HSG-0, HSG-1-Vw,
HSG-03-VW, HSG-3-VW

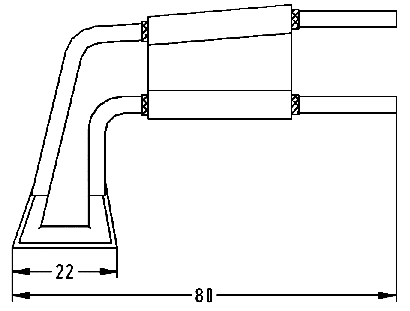

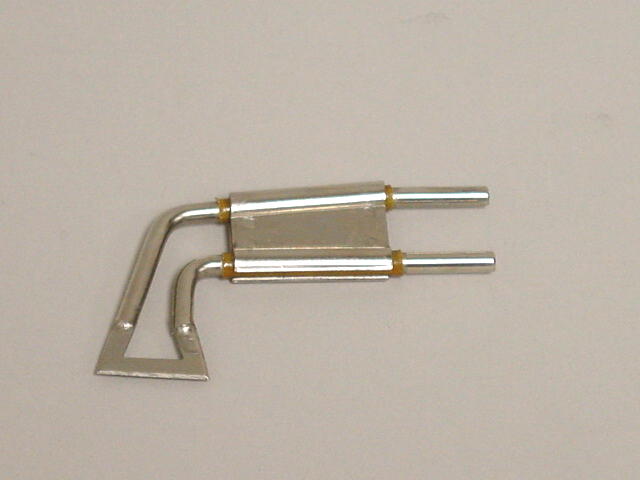

5.Type F-3

For units: HSG-0, HSG-1-Vw,
HSG-03-VW, HSG-3-VW

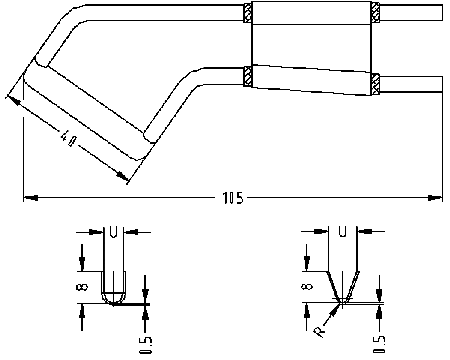

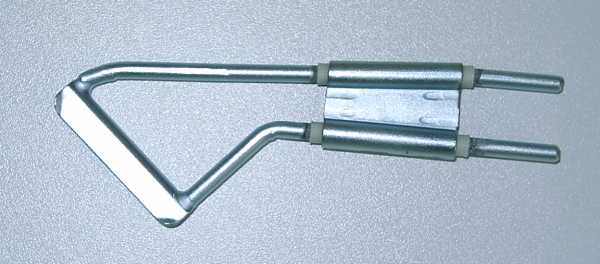

6.Heating fork Type KM

Per modelli: HSG-0, HSG-1-Vw,
HSG-03-VW, HSG-3-VW

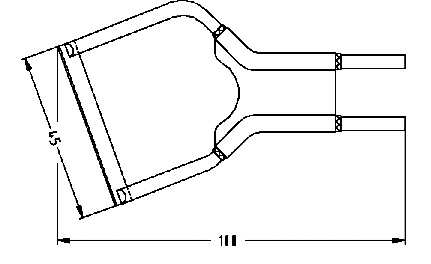

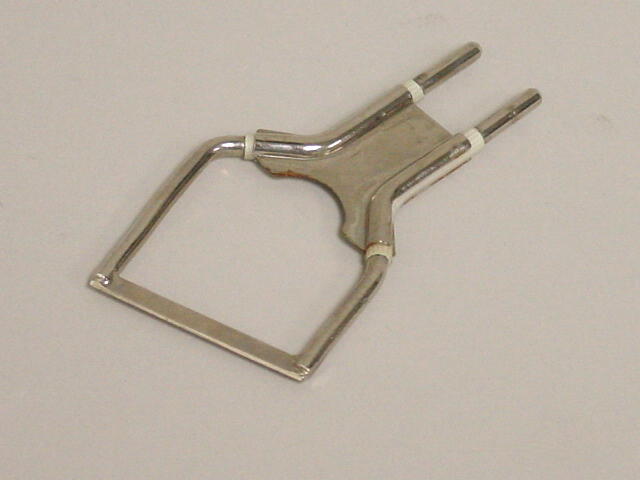

7.Type F-2

For units: HSG-0, HSG-0-electronic,
HSG-1-Vw, HSG-03-VW, HSG-3-VW

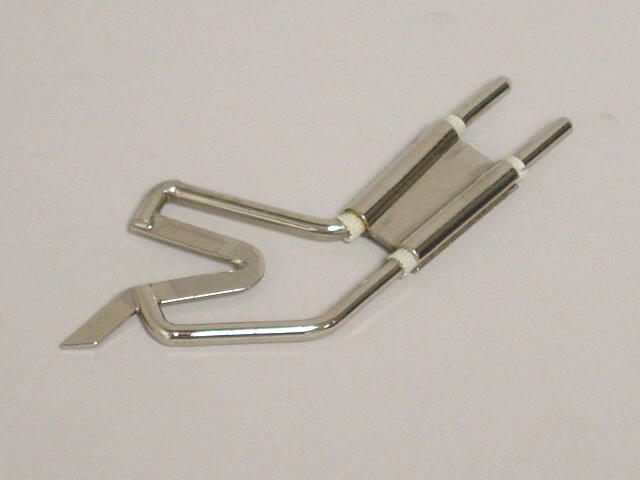

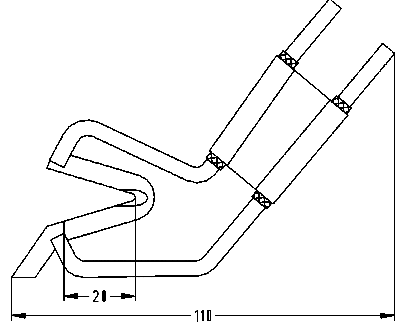

8.Type HS-S

To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.

For units: HSG-0, HSG-1-Vw,
HSG-03-VW, HSG-3-VW

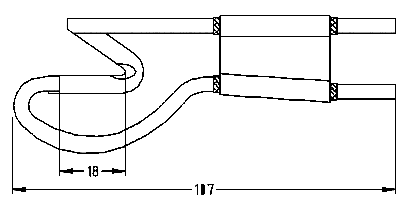

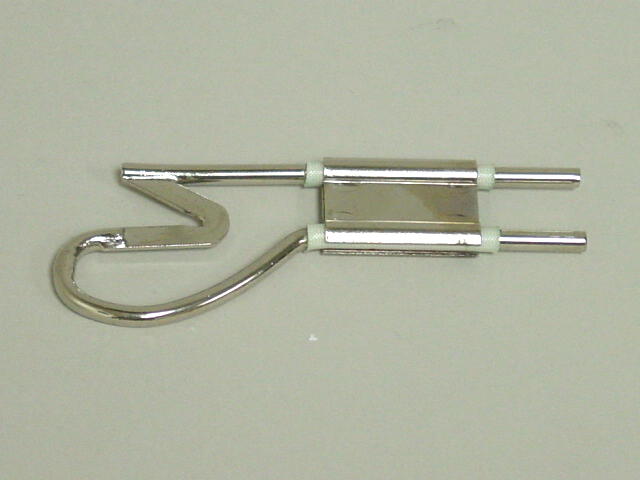

9.Type HS-SG

To cut and seal the edges of stronger fabric, such as awnings and sails which come in larger widths.

For units: HSG-0, HSG-1-Vw,
HSG-03-VW, HSG-3-VW

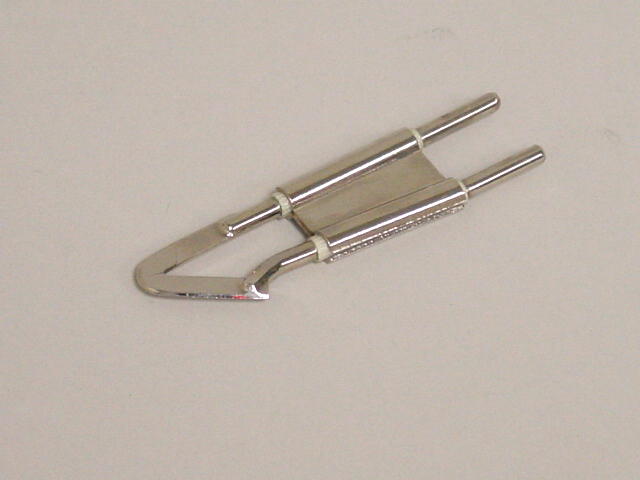

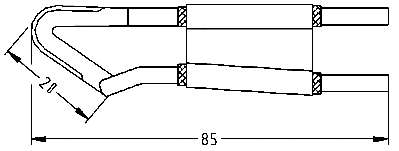

10.Type V

For units: HSG-0, HSG-1-Vw,
HSG-03-VW, HSG-3-VW

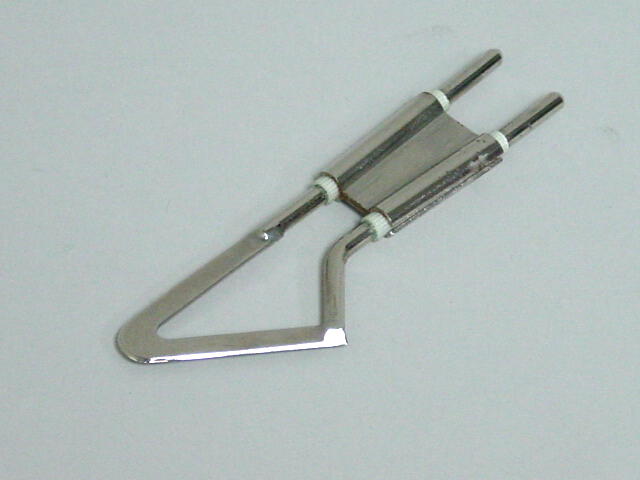

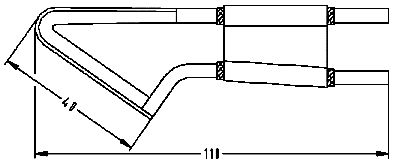

11.Type VST

For units: HSG-0 ectronic, HSG-3-VW

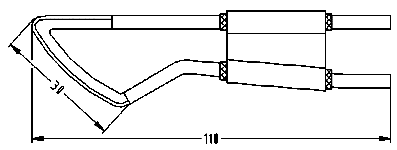

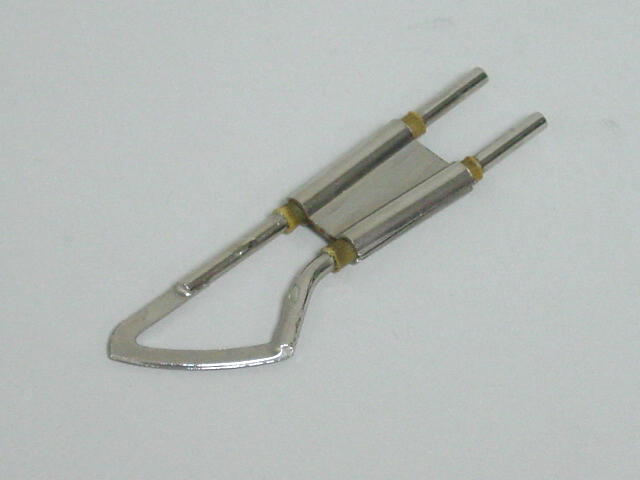

12.Type STA

For units: HSG-3-VW

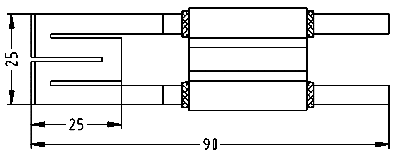

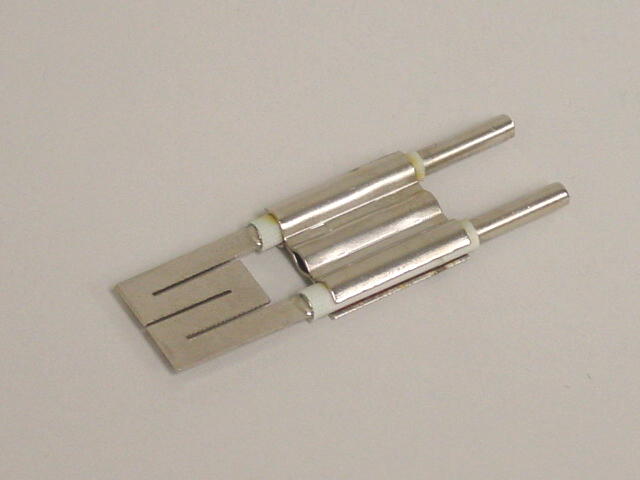

13.Melting point Type F

To joint cord or rope ends

For units: HSG-3-VW, HSG-4-VW, HSG-4-VW-mA

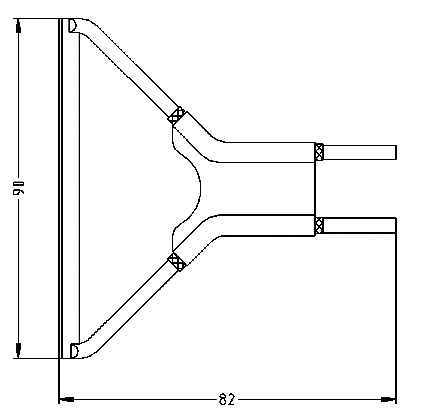

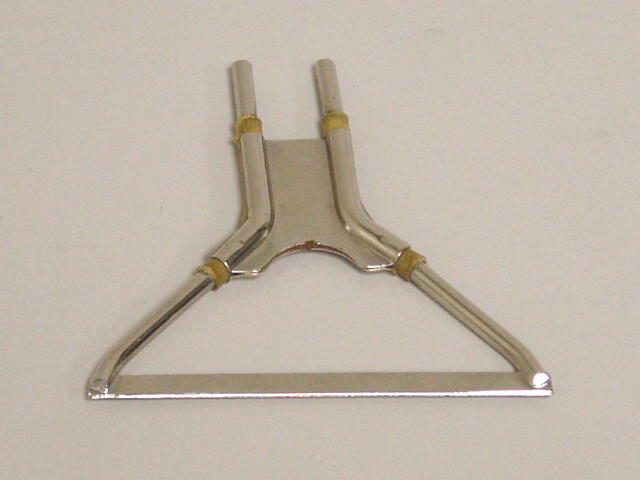

14.Type G-90

Blade to cut ropes and belts up to 60mm in width.

Per modelli: HSG-3-VW, HSG-4-VW, HSG-4-VW-mA

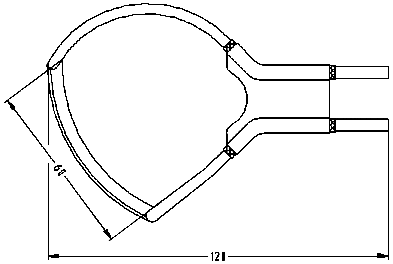

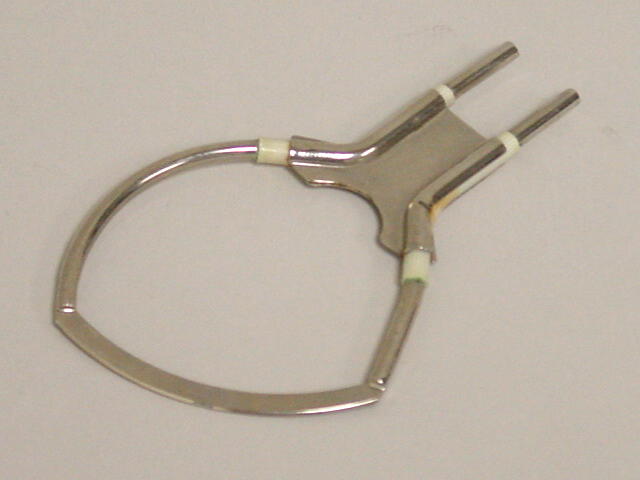

15.Type R-1

Blade to separate ropes up to Ø 50mm For units: HSG-3-VW, HSG-4-VW, HSG-4-VW-mA, HSG-0-electronic

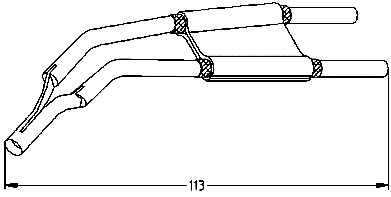

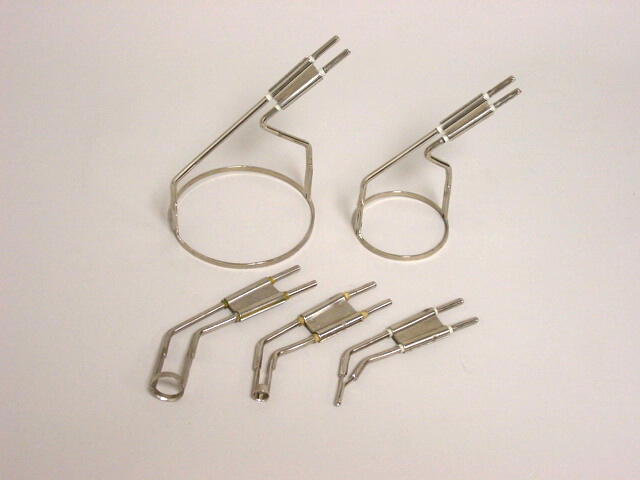

16.Type RU
Ø 3-10 mm

For units: HSG-3-VW, HSG-0, HSG-1-VW-mA, HSG-03-VW

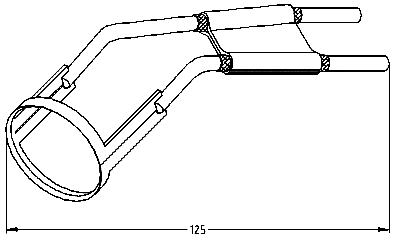

17.Type RU
Ø 11-160 mm

Per modelli: HSG-3-VW

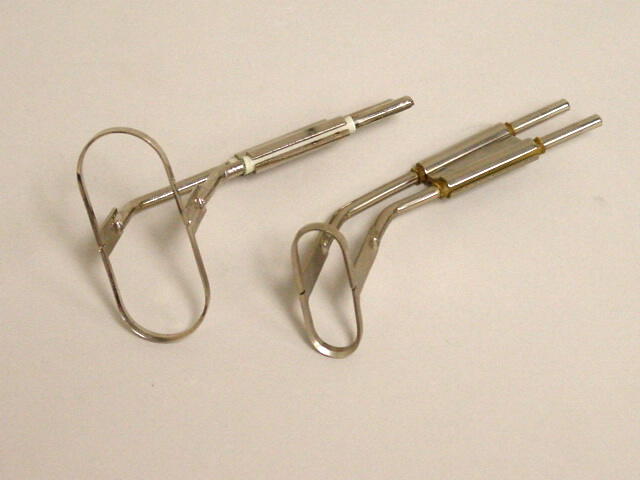

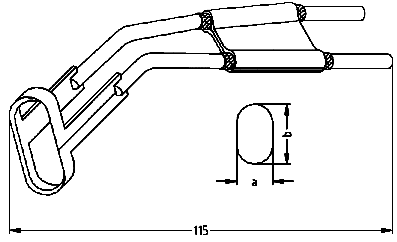

18.Type OV

For unit: HSG-3-VW

a = min. 3mm
b = min. 4mm
a = max. 100mm
b = max. 150mm

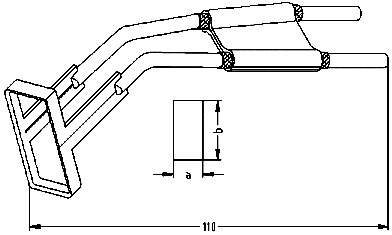

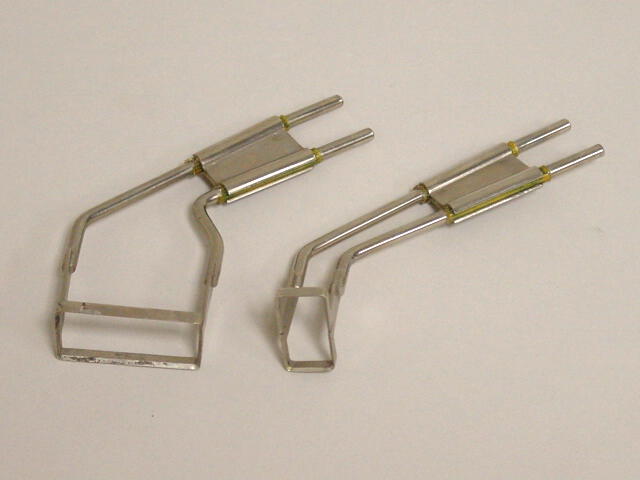

19.Type RE

For unit: HSG-3-VW

a = min. 4mm
b = min. 8mm
a = max. 100mm
b = max. 110mm

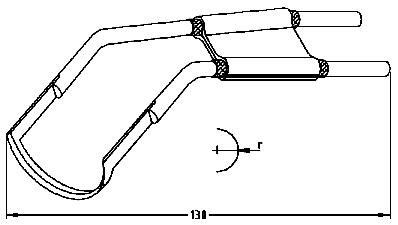

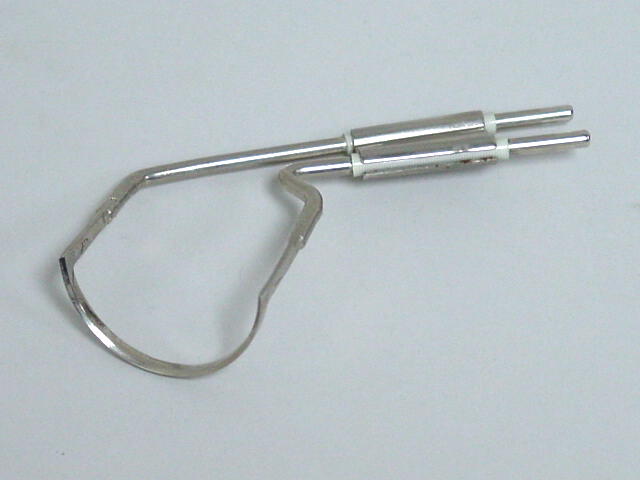

20.Type HR

For unit: HSG-3-VW

r = max. 50mm

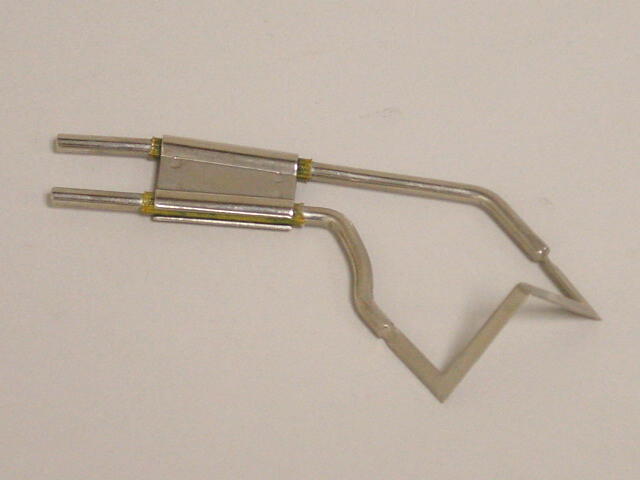

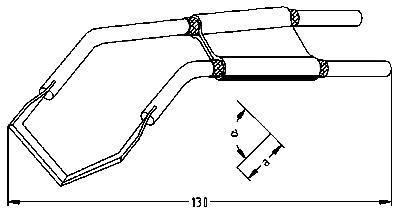

21.Type WI

For unit: HSG-3-VW

a = max. 50mm
angolo = min. 15°; max. 180°

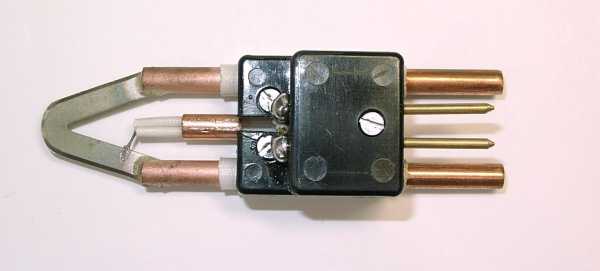

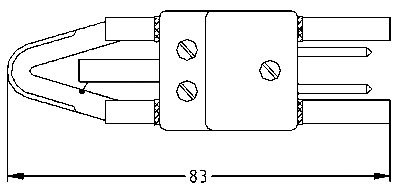

22.Type V-Therm

For unit: HSG-3-VW

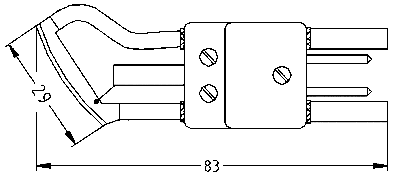

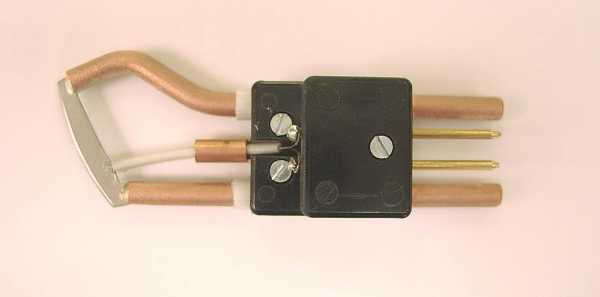

23.Type R-Therm

For unit: HSG-3-VW

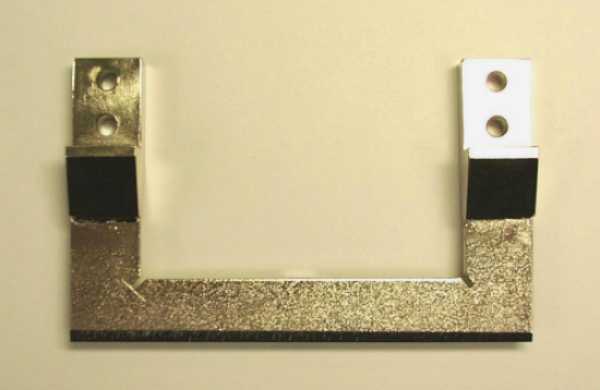

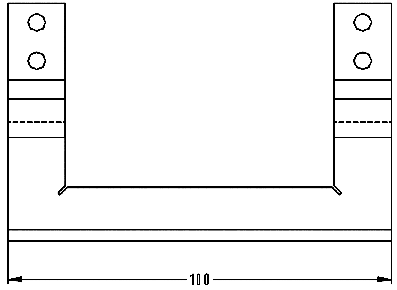

24.Type 7

For model: HSG-7

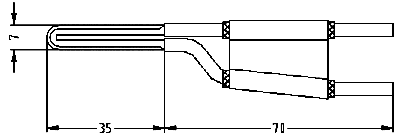

25.Type C

Fuse tip

For units: HSG-0, HSG-1-Vw,
HSG-03-VW,HSG-3-VW

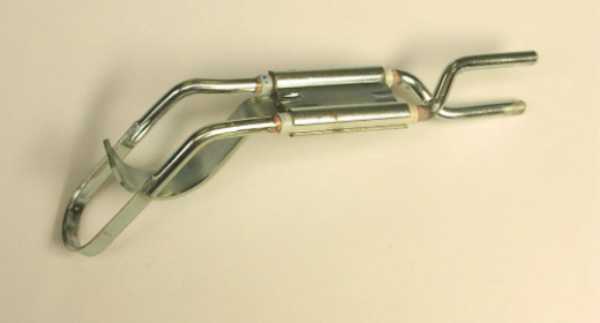

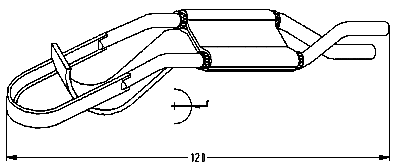

26.Type N-1

To cut grooves into styrofoam

For units: HSG-0, HSG-0-electronic,
HSG-1-VW, HSG-03-VW,HSG-3-VW

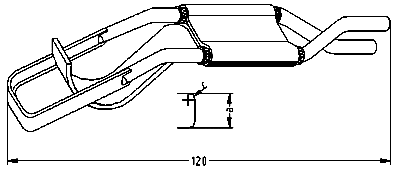

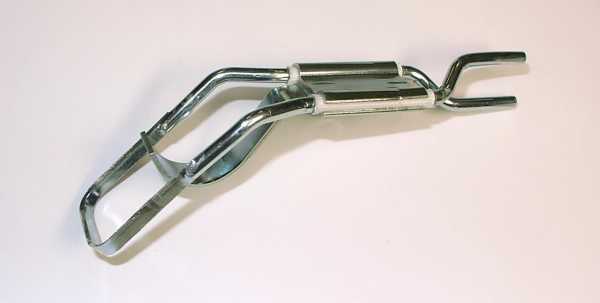

27.Type N-2

To cut grooves into styrofoam

Per modelli: HSG-0, HSG-0-electronic,
HSG-1-VW, HSG-03-VW,HSG-3-VW

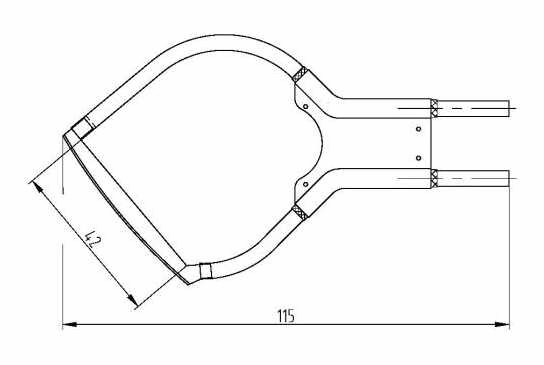

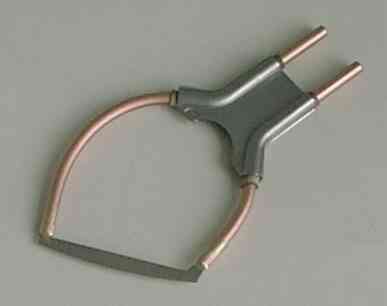

28.Type R-50

Cutting blade of higher capacity, for separating stronger fabrics, strings and ropes up to 35mm diameter

For units: HSG-1-VW, HSG-03-VW,
HSG-3-VW, HSG-4-VW, HSG-4-VW-mA
HSG-0-electronic





There are a lot of type of blades for different solutions These are only some samples.
Can be made special blades of custom enquiry.

 Please, send us all the dimensions that you need: diameter, lenght a and b, radius r and corners
